关于ios：在Swift中连续绘制UIBezierPath期间消除滞后延迟

Removing lagging latency during continuous period of drawing UIBezierPath in Swift

下面的代码通过覆盖触摸来绘制线条，但是在连续不间断的绘制期间开始出现滞后。手指在屏幕上移动的时间越长，这种滞后就会越积越多。结果是实际设备上的 CPU 几乎达到最大值(CPU 98% )，并且绘制的时间越长，生成的图像就越不稳定。

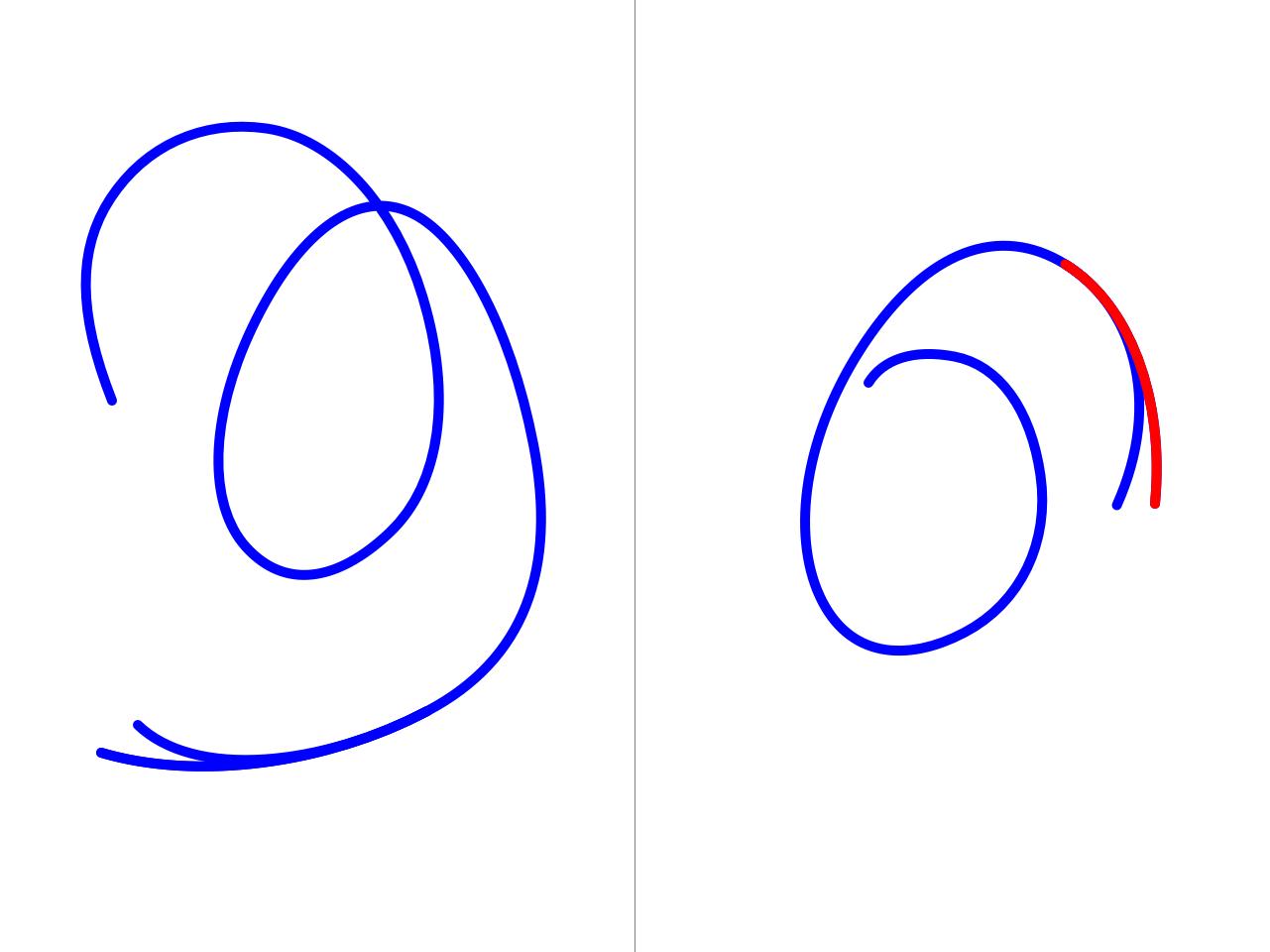

此外，当画得特别快时，尤其是在圆圈中，在 path 和 temporaryPath(或 localPath)之间绘制的路径存在差异。尽管它们是在不同时间绘制的，但它们似乎同时出现在屏幕上，这在视觉上分散了两条快速绘制的路径。在下面的图像之一中，内部路径 (path) 似乎与外部路径 (temporaryPath) 相距一段距离。

1 – 如何消除连续绘制一段时间的滞后延迟？

2 – 如何消除绘制路径的差异？

3 – 如何更改 path 和 temporaryPath 的 alpha/opacity？

enter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131

class swiftView: UIView {

var strokeColor = UIColor.blueColor()
var lineWidth: CGFloat = 5
var snapshotImage: UIImage?

private var path: UIBezierPath?
private var temporaryPath: UIBezierPath?
private var points = [CGPoint]()

var counterPoints:Int?

required init?(coder aDecoder: NSCoder) {
super.init(coder: aDecoder)
}

override func drawRect(rect: CGRect) {
autoreleasepool {

snapshotImage?.drawInRect(rect)

strokeColor.setStroke()

path?.stroke()
temporaryPath?.stroke()

}
}

override func touchesBegan(touches: Set<UITouch>, withEvent event: UIEvent?) {
let touch: AnyObject? = touches.first
points = [touch!.locationInView(self)]

counterPoints = 0
}

override func touchesMoved(touches: Set<UITouch>, withEvent event: UIEvent?) {
let touch: AnyObject? = touches.first
let point = touch!.locationInView(self)

points.append(point)
let pointCount = points.count

counterPoints = counterPoints! + 1

if pointCount == 2 {
temporaryPath = createPathStartingAtPoint(points[0])
temporaryPath?.addLineToPoint(points[1])
setNeedsDisplay()
} else if pointCount == 3 {
temporaryPath = createPathStartingAtPoint(points[0])
temporaryPath?.addQuadCurveToPoint(points[2], controlPoint: points[1])
setNeedsDisplay()
} else if pointCount == 4 {
temporaryPath = createPathStartingAtPoint(points[0])
temporaryPath?.addCurveToPoint(points[3], controlPoint1: points[1], controlPoint2: points[2])
// setNeedsDisplay()

if counterPoints! < 50 {
self.setNeedsDisplay()
} else {
temporaryPath = nil
self.constructIncrementalImage()
path = nil
self.setNeedsDisplay()
counterPoints = 0
}

} else if pointCount == 5 {
points[3] = CGPointMake((points[2].x + points[4].x)/2.0, (points[2].y + points[4].y)/2.0)

// create a quad bezier up to point 4, too

if points[4] != points[3] {
let length = hypot(points[4].x – points[3].x, points[4].y – points[3].y) / 2.0
let angle = atan2(points[3].y – points[2].y, points[4].x – points[3].x)
let controlPoint = CGPoint(x: points[3].x + cos(angle) * length, y: points[3].y + sin(angle) * length)

temporaryPath = createPathStartingAtPoint(points[3])
temporaryPath?.addQuadCurveToPoint(points[4], controlPoint: controlPoint)
} else {
temporaryPath = nil
}

if path == nil {
path = createPathStartingAtPoint(points[0])
}

path?.addCurveToPoint(points[3], controlPoint1: points[1], controlPoint2: points[2])

self.setNeedsDisplay()

points = [points[3], points[4]]
}
}

override func touchesEnded(touches: Set<UITouch>, withEvent event: UIEvent?) {
self.constructIncrementalImage()
path = nil
self.setNeedsDisplay()

counterPoints = 0
}

override func touchesCancelled(touches: Set<UITouch>?, withEvent event: UIEvent?) {
self.touchesEnded(touches!, withEvent: event)
}

private func createPathStartingAtPoint(point: CGPoint) -> UIBezierPath {
let localPath = UIBezierPath()

localPath.moveToPoint(point)

localPath.lineWidth = lineWidth
localPath.lineCapStyle = .Round
localPath.lineJoinStyle = .Round

return localPath
}

private func constructIncrementalImage() {
UIGraphicsBeginImageContextWithOptions(self.bounds.size, false, 0.0)
strokeColor.setStroke()
snapshotImage?.drawAtPoint(CGPointZero)
path?.stroke()
temporaryPath?.stroke()
snapshotImage = UIGraphicsGetImageFromCurrentImageContext()
UIGraphicsEndImageContext()
}

}
